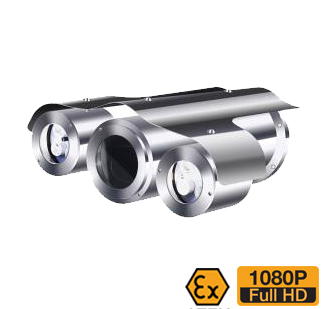

2MP ICR Explosion-Proof Network Camera DS-FB4020CDscription
Explosion-proof performance in line with GB3836.1-2000 "Electrical apparatus for explosive gas atmospheres Part 1: General requirements",GB3836.2-2000 "Explosion-proof electrical apparatus for explosive gas atmospheres Part 2: Flameproof " d " requirements.
It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as oil field,chemical plant,steamship,gas station,curative,gas storeroom and so on.
2MP Explosion-Proof IP Camera DS-FB4020C is a mature explosion-proof monitoring equipment, it is proven and reliable. The product can be used in environments with flammable or explosive gases, tie in with various types of explosion proof pan/tilt, to achieve the purpose of monitoring site.
2MP Explosion-Proof IP Camera DS-FB4020C can choose to install all kinds of cameras , also available with switching power supplies, meet the demands of all types of environments. It can work stably for a long time from -25 ℃ to 70 ℃ temperature conditions.The window using the special tempered glass,durable and ensuring a clear image.
With 2 outlet holes,use explosion-proof flexible tube or armored cable for explosion-proof electrical connections.Easy installation, simple maintenance,choose electric pan/tilt,mounting bracket,base,column,tower for installation.
| Marking： Ex II2G db ⅡC T6； |
| Ex II2D tb IIIC (85°C) Db |
| Ingress Protection: IP68 |
| Applicable to Zone 0 and dust-ignition environment. |
| Polished finish appearance, corrosion-proof treated internal parts. |
| Stainless steel 304 |
| 1/2.8" Progressive Scan CMOS |
| Silicone O-ring seals |
| The installation and maintenance of DS-FB4020C are simple and easy. |
| Available Models：DS-FB4020C |
| Model：DS-FB4020C | ||
| General | ||
| Marking： | | | Ex db ⅡC T6 Gb |
| Ex tb IIIC T80°C Db IP68 | ||
| Ingress Protection: | | | IP68 |
| Operating Conditions: | | | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | ||
| Material: | | | Stainless steel 304 |
| Cable Entry Holes: | | | 2 × G-3/4″ |
| Power Supply: | | | AC220 V |
| Power Consumption: | | | Max. 39W |
| IR Range: | | | 100m |
| Dimensions: | | | 478 × 380 × 180 mm (18.81"× 14.96" × 7.08") |
| Unit weight: | | | 16 kg (35.27 lbs) |
| Camera | | | |
| Image Sensor: | | | 1/2.8" Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| SNR: | | | ＞52dB（AGC off） |
| Min. Illumination: | | | Color: 0.05 Lux @(F1.6, AGC ON) |
| B/W: 0.01 Lux @(F1.6, AGC ON) | ||
| Shutter time: | | | 1/50(1/60)s to 1/10,000s |
| Day& Night: | | | ICR (Auto/Schedule/Alarm Trigger) |
| Wide Dynamic: | | | Support DWDR |
| Digital noise reduction: | | | Support 2D/3D |
| Lens | ||
| Focal Length: | | | 4.7 mm to 94 mm, 20× optical zoom |
| Zoom Speed: | | | Approx. 2.7 s (Optical Lens, Wide-Tele) |
| Angle of View: | | | 61.4° to 2.9° (Wide-Tele) |
| Minimum Working Distance: | | | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range: | | | F1.6 to F3.5 |
| Compression Standard | ||
| Video Compression: | | | H.265/H.264 |
| H.264 code profile: | | | Baseline profile/main profile/high profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Image Enhancement: | | | BLC/3D DNR |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| 3D DNR: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
